型 號 Model Number |
RFA1504 |
|
|
品名 Product Name |
微軸流扇Micro Axial Fan |
|
|
額定電壓 Rated Voltage (VDC) |
3.3 |
5.0 |
|
運轉電壓 Operating Voltage (VDC) |
2.8 ~ 3.6 |
4.5 ~ 5.5 |
|
額定電流 Rated Current (mA) |
20 (max:25) |
30 (max:36) |
|
轉速 Rotation Speed (RPM) |
11,000 ± 20% |
16,000 ± 20% |
|

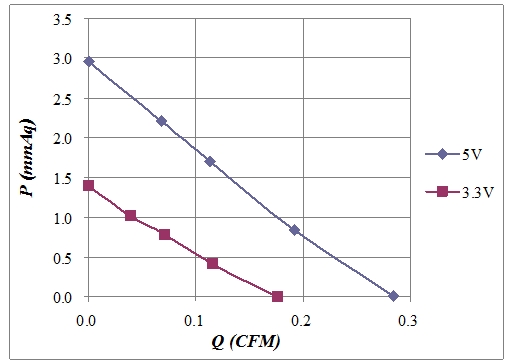

風量 Air Flow (CFM) |
0.18 |
0.28 |
|
靜壓 Static Pressure (mmAq) |
1.39 |
2.96 |
|
噪音 Noise (dB(A)) at1m |
18 |
23.7 |
|
絕緣強度 Insulation Resistance |
10MEGA. Ω Min. at 500VDC (between frame and (+) terminal) |
|
|
耐壓強度 Dielectric Strength |
5mA Max. at 500VAC、60Hz、One Minute (between frame and (+) terminal) |
|
|
壽 命 Life Expectancy (hours) |
20,000 at45℃ |
|
|
認 證 Compliance |
CE、RoHS |
|
|
耐水耐塵 IP Rating |
IP58 |
|
|
重量 Weight (g) |
1.27 |
|
|
保護 Protection |
?鎖住保護Lock rotor ?自動重啟Auto Restart ?極性保護 Polarity |
|
